Migration guide

Update version 4.x to 5.x#

New symbol setup#

  • All symbols in our CAKE products now use the following predefined settings:
    • layer-styles for correct styling or to indicate a possible state of a symbol.
    • text-styles with the correct alignment (center, left, right).

Don't worry! Replacing symbols in layer-styles is not as complicated as it seems. New layer-styles have been implemented in our SCHWARZ CAKE UI Fundamental library to optimize the workflow with the SCHWARZ CAKE UI Web library. Just try it!

  • Update your SCHWARZ CAKE UI libraries in Sketch:
    • Be sure to compare the changes in the overview carefully
    • Check your layout and link your components or texts with the new text & layer styles

Replace color symbols#

  • As a result of the removal of the color icons from the pur SCHWARZ CAKE UI Fundamental library, you should replace these icons in your components with our new layer styles.
  • Here is a short workaround on how you can do this most easily and efficiently.
 Steps DescriptionPreview

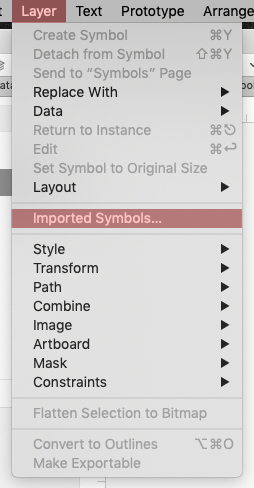

1 Display all used color symbols in your Sketch file by clicking on "Layer/Imported Symbols…"Step 1: Imported symbol

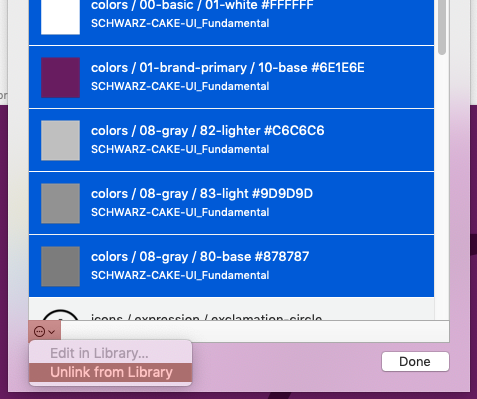

2Select all displayed color symbols and unlink them from the original library file.
Hint: The symbols now appear on your "Symbols" page		Step 2: Unlink symbol

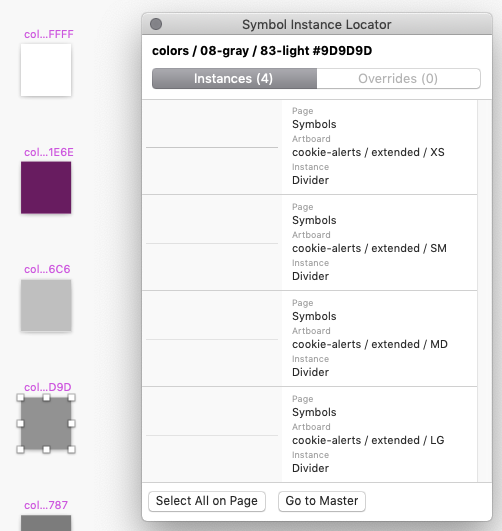

3 Select the artboard of one of the unlinked color symbols and run the plugin "Symbol Instance Locator"Step 3: Run plugin

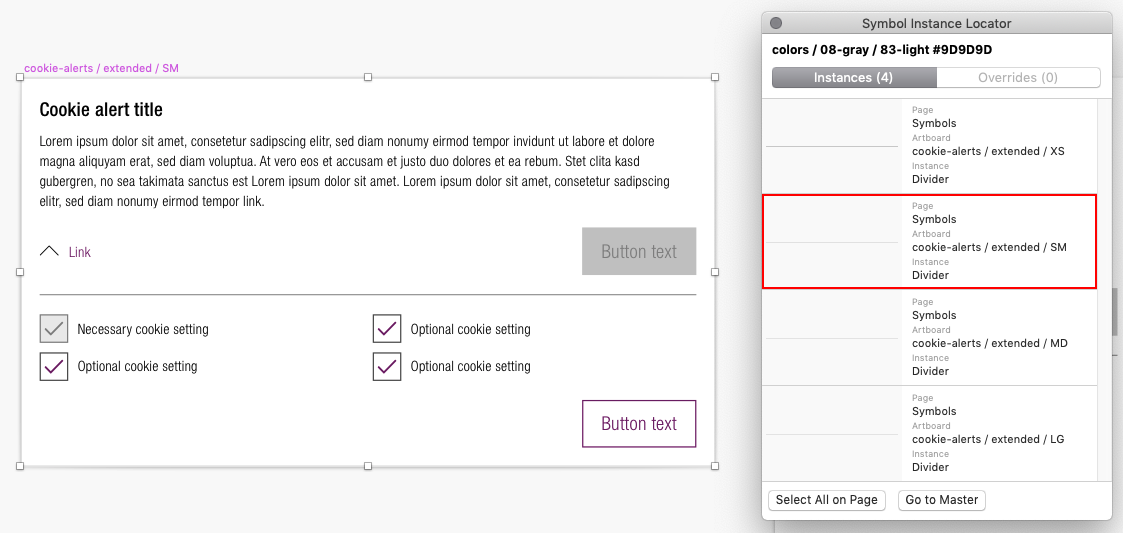

4Jump directly to the located color symbol in a component by clicking on one of the shown instancesStep 4: Jump

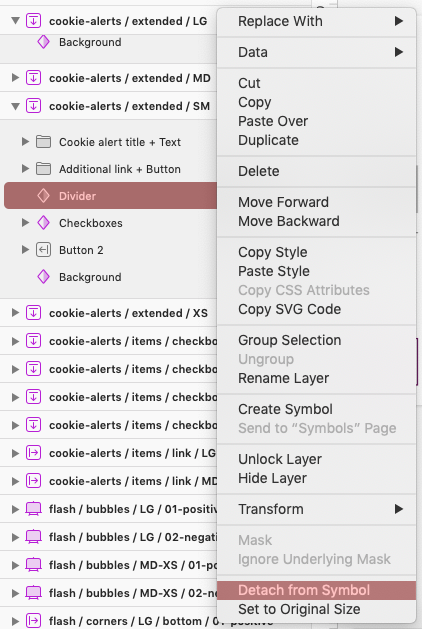

5Select the layer, detach it and update the occured shape with the desired layer-style. Repeat this step until there is no color symbol left in your document.
Hint: Run the plugin on the artboards again to be 100% sure		Step 5: Detach symbol
6Delete the artboard of the replaced color symbol

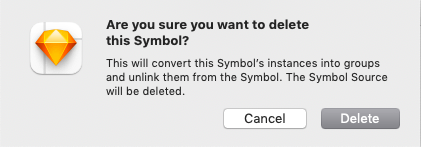

Hint: If you receive this notification from Sketch you didn't replace all color symbols with a layer-style		Step 6: Sketch notification

Update version 3.x to 4.x#

New Git repositories#

  • All CAKE library files are now at home in the Git repositories of Azure DevOps.
  • Visit setup and find a step-by-step tutorial how to get all future CAKE updates.

Global file renaming#

  • The name of SCHWARZ CAKE UI Core has been changed to SCHWARZ CAKE UI Fundamental due to the new library setup of some SCHWARZ Digital's CI elements.
  • The new SCHWARZ CAKE UI Fundamental library only consists of symbols, color variables, text- and layer-styles that are fundamental to each of our products.

Symbol transfer#

  • Some symbols have been moved from our SCHWARZ CAKE UI Fundamental library (former CORE) to their explicit product library files (e.g. SCHWARZ CAKE UI Web,…).
  • Verify that all the following symbols are linked to the correct Sketch library:
    • Buttons
    • Forms
    • Tables

Replace library#

  • Due to the symbol transfer you need to replace the symbols: buttons, forms and tables in every of your Sketch files with the help of the plugin Library Replacer.

Symbol replacement#

Many changes have been made to our library files as a result of the new SCHWARZ Design Manual.

  • Almost every symbol and component has been adjusted.
  • The biggest changes have been made for colors, fonts, icons (Fundamental) and other components (Web).

General information#

  • Regard the list below for a detailed overview what exactly changed.

Added#

  • New radius symbol

Changed#

  • Font-weight of the Helvetica New LT Pro:
    • Condensed to Light Condensed
    • Bold Condensed to Medium Condensed
  • SCHWARZ color set and their naming to new brand colors (i.e. info gets brand-info, warning gets brand-attention,…)
  • Icons to new icon set
  • Logo to the new SCHWARZ enterprise logo

Removed#

  • All gradients
  • 2/3 of the icon set

Added symbols#

Colors#

brand-secondary#
  • base: #41053C
brand-info#
  • darkest: #2D3C50
brand-attention#
  • darkest: #AF6E00
danger#
  • darkest: #5A0006
success#
  • darkest: #02421E
gray#
  • dark: #505050

Icons#

interaction#
  • arrows-expand
  • calendar
  • cogwheel
  • controls
  • file
  • fingerprint
  • sync
  • upload

Changed symbols#

Colors#

brand-primary#
  • base: #791F82 to #6E1E6E
info to brand-info#
  • base: #0050AA to #5F7DAA
  • dark: #00438F to #4B6487
  • darker: #003673 to #3C506E
warning to brand-attention#
  • base: #BE591D to #FFD746
  • dark: #9F4B18 to #E6B43C
  • darker: #813C14 to #C8912D
danger#
  • base: #E60A14 to #E3000F
  • dark: #C10811 to #B5000C
  • darker: #9C070E to #880009
success#
  • base: #348553 to #05A54B
  • dark: #2C7046 to #04843C
  • darker: #235A38 to #03632D
gray#
  • base: #4E5761 to #878787
  • lightest: #F1F2F3 to #EBEBEB
  • lighter: #E3E4E5 to #C6C6C6
  • light: #C6C9CC to #9D9D9D

Shadow#

  • default: 0px 2px 4px 0px to default: 0px 1px 2px 0px

Icons#

expression#
  • conversation-ballons
  • exclamation-circle
  • exclamation-triangle
  • hook-circle
  • information-circle
  • questionmark-circle
interaction#
  • arrow-left-circle
  • arrow-right-circle
  • arrows-vertical
  • bars-horizontal
  • camera
  • clock
  • crosshair
  • download
  • eye-close
  • eye-open
  • hook
  • magnifier
  • magnifier-minus
  • magnifier-plus
  • map
  • map-marker
  • placeholder
  • printer
  • social-share
navigation#
  • arrow-down
  • arrow-left
  • arrow-right
  • arrow-up
  • cross
  • undo
status#
  • bell-regular
  • bell-solid
  • bookmark-regular
  • bookmark-solid
  • heart-regular
  • heart-solid
  • star-regular
  • star-solid

Removed symbols#

Colors#

brand-primary#
  • background: #F9F6FA
  • lighter: #E9DAEA
  • light: #D3B6D6
  • dark: #651A6D
  • darker: #521558
info#
  • background: #F5F8FC
  • light: #D6E3F1
  • lighter: #ADC7E4
mark#
  • background: #FFFEF5
  • light: #FFFAAD
  • lighter: #FFFDD6
  • dark: #FBCB03
  • darker: #F7A606
danger#
  • background: #FEF5F6
  • light: #F7B0B3
  • lighter: #FBD8D9
success#
  • background: #F7FAF8
  • light: #BED8C8
  • lighter: #DEEBE3
warning#
  • background: #FCF8F6
  • lighter: #F5E4DB
  • light: #EACAB6
gray#
  • darker: #353B42

Shadow#

  • flyout: basic-black, 0px 3px 3px 0px, 0.15

Icons#

animals#
  • removed all icons
expression#
  • award
  • certificate
  • comment
  • hook-shield
  • lightbulb-on
  • newspaper
  • paragraph-circle
  • thumbs-up-ballon
interaction#
  • 360-degree
  • book-open
  • bulletlist
  • checklist
  • ellipsis-horizontal
  • envelope-close
  • envelope-open
  • external-link
  • hand-pointer
  • flyer
  • house
  • lock-close
  • pause-circle
  • pencil
  • phone
  • phone-envelope
  • play-circle
  • shopping-cart-1
  • store
  • store-magnifier
  • plus
  • trash
  • user
food & beverage#
  • removed all icons
nature#
  • removed all icons
payment#
  • removed all icons
smiley#
  • removed all icons
status#
  • thumbs-down-regular
  • thumbs-down-solid
  • thumbs-up-regular
  • thumbs-up-solid
transport & logistic#
  • removed all icons
